Qhov kev kuaj xyuas no tau tsim tshwj xeeb rau kev tshuaj xyuas qhov ntev ntawm cov rooj sib tham headliner kev koom ua ke nrog lub hnub ci thav duab hauv 6-seater tsheb. Nws ua kom muaj kev txheeb xyuas qhov tseeb ntawm qhov tseem ceeb ntawm qhov loj me, mounting txoj haujlwm, thiab geometric tolerances raws li GD&T cov kev xav tau.Lub fixture txhawb nqa ob qho tib si kev soj ntsuam thiab CMM ntsuas, xa siab rov ua dua thiab ua tau zoo ib yam ntawm cov khoom tsim tawm. Nws yog qhov zoo tagnrho rau automotive OEMs thiab Tier lwm tus neeg xav tau kev tswj xyuas zoo rau cov khoom siv sab hauv.
Tshwj xeeb tshuaj xyuas fixtures rau kev lag luam automotive
Lub headliner thiab sunroof thav duab sib dhos yog ib qho tseem ceeb nyob rau hauv automotive tha xim sab hauv systems, yuav tsum tau nruj me ntsis tswj thiab meej kev sib raug zoo nrog lub tsheb lub cev qauv. Qhov kev kuaj xyuas no yog tsim los xyuas cov yam ntxwv tseem ceeb xws li cov ntsiab lus mounting, contour profiles, thiab qhov chaw ua haujlwm, ua kom muaj kev ua raws li cov qauv tsim.
Los ntawm kev sib koom ua ke siab - qhov chaw nrhiav qhov tseeb thiab cov qauv kev txhawb nqa ruaj khov, cov khoom siv yuav txo qis kev ntsuas qhov sib txawv thiab ua kom cov txiaj ntsig tau rov ua dua. Nws tso cai rau cov tuam txhab tsim khoom kom tswj tau qhov zoo ib yam ntawm cov khoom tsim tawm thaum txo cov kev soj ntsuam tsis raug thiab rov ua haujlwm dua.
Qhov kev daws teeb meem no tshwj xeeb yog tsim rau cov rooj sib txoos loj thiab nyuaj sab hauv, qhov tseeb thiab kev ruaj ntseg yog qhov tseem ceeb rau kev sib dhos hauv qab thiab kev ua haujlwm ntawm lub tsheb.
Yam ntxwv
|
Qeb |
Automotive Checking Fixture |
|
Daim ntawv thov |
Headliner & Sunroof Frame Assembly |
|
Hom tshuaj ntsuam xyuas |
Dimensional & Position Verification |
|
Qhov tseeb |
± 0.01-0.03 hli |
|
Kev ntsuas ntsuas |
Phau ntawv / CMM Compatible |
|
Kev lag luam |
Automotive Sab hauv Systems |
|
Cim npe |
Tshawb xyuas Fixture, Automotive Inspection, Sunroof Ncej, Headliner Assembly |
Kev Tshawb Fawb Kev Tshaj Lij Tshaj Lij rau cov yam ntxwv tseem ceeb
Pov thawj Kev paub hauv Automotive Inspection Fixtures
Muab cov kev soj ntsuam txhim khu kev qha rau cov tsheb sib dhos ua ke
-
5000 +Kev soj ntsuam Fixture Projects xa
-
10 +XyooKev paub txog engineering hauv Automotive Tooling
FAQ
1. Lub hom phiaj ntawm kev kuaj xyuas headliner yog dab tsi?
Lub headliner xyuas fixture yog siv los xyuas qhov tseeb qhov tseeb thiab qhov chaw sib dhos ntawm cov khoom siv sab hauv, kom ntseeg tau tias haum thiab sib dhos hauv lub tsheb.
2. Cov khoom siv no puas tuaj yeem siv nrog CMM?
Yog lawm, lub fixture yog tsim los ua kom tiav nrog kev sib koom tes ntsuas tshuab rau siab -kev tshuaj xyuas qhov tseeb.
3. Dab tsi kam rau ua tiav?
Kev tshuaj xyuas qhov tseeb yog li ntawm ± 0.01 hli mus rau ± 0.03 hli, nyob ntawm qhov ntsuas ntsuas.
4. Puas yog nws tsim nyog rau kev tshuaj xyuas ntau lawm?
Yog, lub fixture yog optimized rau batch soj ntsuam thiab ntau lawm zoo tswj.
5. Cov yam ntxwv twg tuaj yeem kuaj xyuas?
Mounting cov ntsiab lus, qhov chaw, profiles, contours, thiab tag nrho cov sib dhos qhov ntev.
6. Nws ua li cas txhim kho kev tsim khoom zoo?
Los ntawm kev ua kom ntseeg tau qhov kev soj ntsuam zoo ib yam, nws txo qhov tsis xws luag, rov ua haujlwm dua, thiab teeb meem sib dhos.
7. Nws puas haum rau cov khoom loj?
Yog lawm, cov qauv tsim los txhawb cov rooj sib txoos loj thiab nyuaj xws li headliners.
8. Qhov kev lag luam twg yog qhov khoom siv no siv hauv?
Feem ntau automotive, tshwj xeeb tshaj yog sab hauv system manufacturing.
9. Lub sijhawm ua haujlwm ntev npaum li cas?
Lub sij hawm txhuas nyob ntawm qhov nyuaj tab sis feem ntau yog li ntawm 3-6 lub lis piam.
Hom Fixtures
- Vuam Fixture
- Xyuas Fixture
-

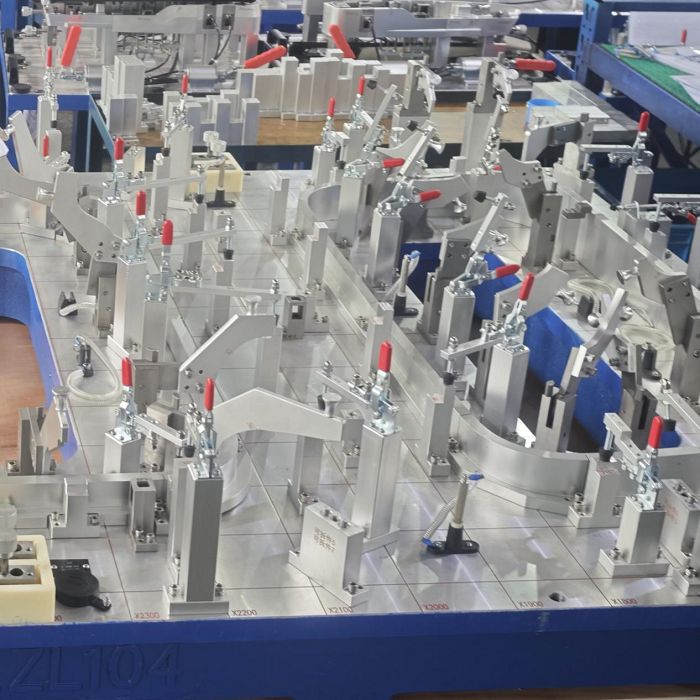

Vuam FixtureUa kom tiav cov kev sib raug zoo thiab rov ua dua cov txiaj ntsig nrog peb cov vuam fixtures. Tsim kom ruaj khov clamping thiab qhov chaw raug, lawv txo qhov cuam tshuam, txhim kho qhov sib xws, thiab txhawb kev tsim khoom zoo hauv ob qho tib si phau ntawv thiab cov kab siv tshuab.
-

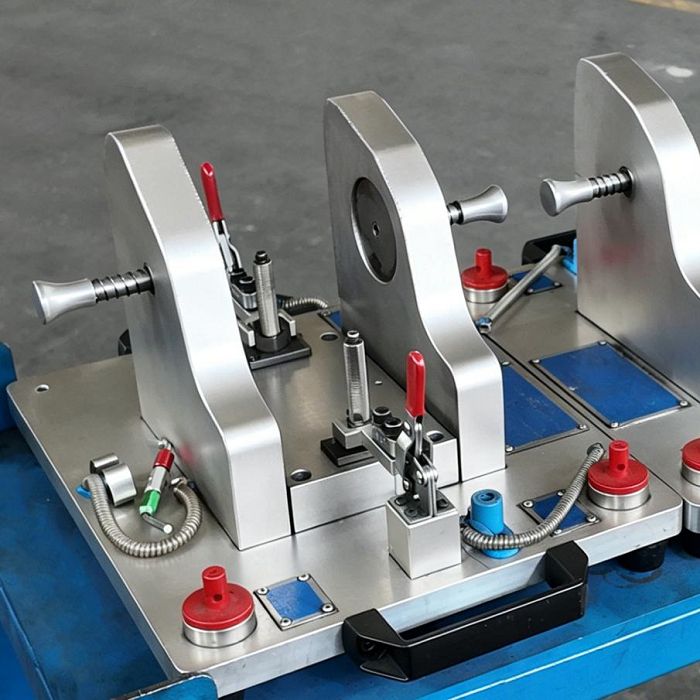

Xyuas FixturePeb cov khoom siv kuaj xyuas yog tsim los xyuas kom meej qhov ntsuas qhov ntsuas qhov tseeb thiab kev ua pov thawj zoo ib yam rau cov khoom siv tsheb. Los ntawm cov khoom stamped mus rau cov rooj sib txoos nyuaj, peb muab cov kev tshuaj xyuas txhim khu kev qha uas txhawb nqa GD&T validation, txhim kho repeatability, thiab txo cov khoom tsis xws luag.
