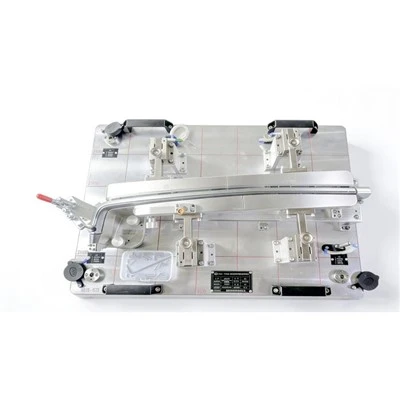

Qhov kev kuaj xyuas no tau tsim tshwj xeeb rau kev tshuaj xyuas qhov ntev ntawm lub tsheb qhov rooj sib dhos. Nws ua kom muaj kev txheeb xyuas qhov tseeb ntawm cov yam ntxwv tseem ceeb xws li cov ntsiab lus vuam, txuas txuas txuas, thiab tag nrho cov geometry, ua tau raws li GD&T cov kev cai nruj.Nrog rau cov qauv nruj thiab siab - qhov tseeb qhov chaw, qhov kev sib tw muab kev rov ua tau zoo thiab ruaj khov thaum kuaj xyuas.
Kev soj ntsuam kom raug rau cov qauv qhov rooj ncej sib dhos
Automotive qhov rooj thav duab yog cov khoom siv tseem ceeb uas cuam tshuam ncaj qha rau lub tsheb kev nyab xeeb, kev sib khi ua haujlwm, thiab kev sib dhos precision. Qhov kev kuaj xyuas no yog tsim los xyuas qhov tseeb qhov tseeb thiab qhov chaw sib xws ntawm cov rooj sib txoos welded qhov rooj, suav nrog cov ntsiab lus tseem ceeb thiab kev ua haujlwm zoo.
Los ntawm kev sib koom ua ke siab -rigidity puag qauv nrog precision qhov chaw, lub fixture ua kom ruaj khov kev txhawb nqa rau qhov loj thiab nyuaj, txo qhov kev ntsuas qhov sib txawv thaum kuaj xyuas. Nws ua rau cov tuam txhab lag luam txhawm rau txheeb xyuas qhov sib txawv thaum ntxov hauv kev tsim khoom, txo qis kev ua haujlwm, thiab tswj kom zoo ib yam ntawm cov txheej txheem vuam thiab sib dhos.
Qhov kev daws teeb meem no yog qhov zoo tshaj plaws rau cov tsheb OEMs thiab cov neeg muag khoom Tier koom nrog hauv lub cev -hauv -dawb thiab cov qauv tsim khoom.
Yam ntxwv
|
Qeb |
Automotive Check Fixture |
|
Daim ntawv thov |
Qhov Rooj Frame Assembly |
|
Hom tshuaj ntsuam xyuas |
Qauv & Dimensional Verification |
|
Qhov tseeb |
± 0.01-0.03 hli |
|
Kev ntsuas ntsuas |
Phau ntawv / CMM Compatible |
|
Kev lag luam |
Automotive Lub cev qauv |
|
Cim npe |
Qhov Rooj Ncej Fixture, Tshawb Fixture, Automotive Inspection, BIW |
Kev Tshawb Fawb Kev Tshaj Lij Tshaj Lij rau cov yam ntxwv tseem ceeb
Muaj kev paub dhau los hauv Cov Txheej Txheem Txhim Kho Kev daws teeb meem
Txhawb nqa tsheb lub cev thiab cov qauv tshuaj xyuas cov cai
-
400 +Cov Txheej Txheem Fixture xa tuaj
-
10 +XyooAutomotive Tooling Experience
FAQ
Lub qhov rooj thav duab xyuas fixture siv rau dab tsi?
Nws yog siv los tshuaj xyuas qhov tseeb qhov tseeb thiab cov qauv kev sib raug zoo ntawm lub qhov rooj ncej sib dhos.
Nws puas tuaj yeem tshawb xyuas cov khoom siv welded?
Yog, nws yog tsim tshwj xeeb rau welded sib dhos thiab cov khoom siv.
Qhov tseeb twg tuaj yeem ua tiav?
Feem ntau tsis pub dhau ± 0.01-0.03 hli nyob ntawm qhov kev tshuaj xyuas.
Nws puas haum rau cov khoom loj?
Yog, lub fixture yog tsim los nrog ib tug nruj qauv los txhawb cov rooj sib txoos loj.
Nws puas tuaj yeem siv nrog CMM systems?
Yog lawm, nws txhawb nqa ob qho tib si kev tshuaj xyuas phau ntawv thiab CMM ntsuas.
Cov yam ntxwv dab tsi tuaj yeem kuaj xyuas?
Vuam cov ntsiab lus, mounting interfaces, qhov chaw, thiab tag nrho cov geometry.
Nws txhim kho kev tsim khoom zoo li cas?
Nws ua kom muaj kev soj ntsuam zoo ib yam thiab txo qhov sib txawv ntawm kev sib dhos.
Puas yog nws tsim nyog rau kev tsim khoom loj?
Yog, nws yog optimized rau batch soj ntsuam thiab ntau lawm zoo tswj.
Nws puas tuaj yeem kho tau?
Yog, tag nrho cov khoom siv yog tsim los ntawm cov neeg siv khoom kos duab thiab cov kev xav tau.
Lub sijhawm ua haujlwm yog dab tsi?
Typically 4–6 weeks depending on complexity.
Hom Fixtures
- Vuam Fixture
- Xyuas Fixture
-
Vuam FixtureUa kom tiav qhov kev sib raug zoo thiab rov ua dua vuam tau nrog peb cov khoom siv vuam. Tsim los rau kev ruaj khov clamping thiab qhov chaw raug, lawv txo qhov tsis sib xws, txhim kho qhov sib xws, thiab txhawb kev tsim khoom zoo hauv ob qho tib si phau ntawv thiab cov kab tsis siv neeg.
-
Xyuas FixturePeb cov khoom siv kuaj xyuas yog tsim los xyuas kom meej qhov ntsuas qhov ntsuas qhov tseeb thiab ua pov thawj zoo ib yam rau cov khoom siv tsheb. Los ntawm cov khoom stamped mus rau cov rooj sib txoos nyuaj, peb muab cov kev soj ntsuam txhim khu kev qha uas txhawb nqa GD&T validation, txhim kho repeatability, thiab txo cov khoom tsis xws luag.
